Yuta Shimoda, Tomohiro Tachi, and Jun Sato. “Flat-Foldable Rigid Origami with Uniform Thickness Panels.” Advances in Architectural Geometry (2020): 196-215.
Advances in Architectural Geometry 2020にて採択された論文。
一定厚のパネルとヒンジからなる折りたためる建築構造物の設計手法を提案した。
この構造物は従来の手法に比べて畳むとコンパクトなほか、施工が容易である。
Abstract

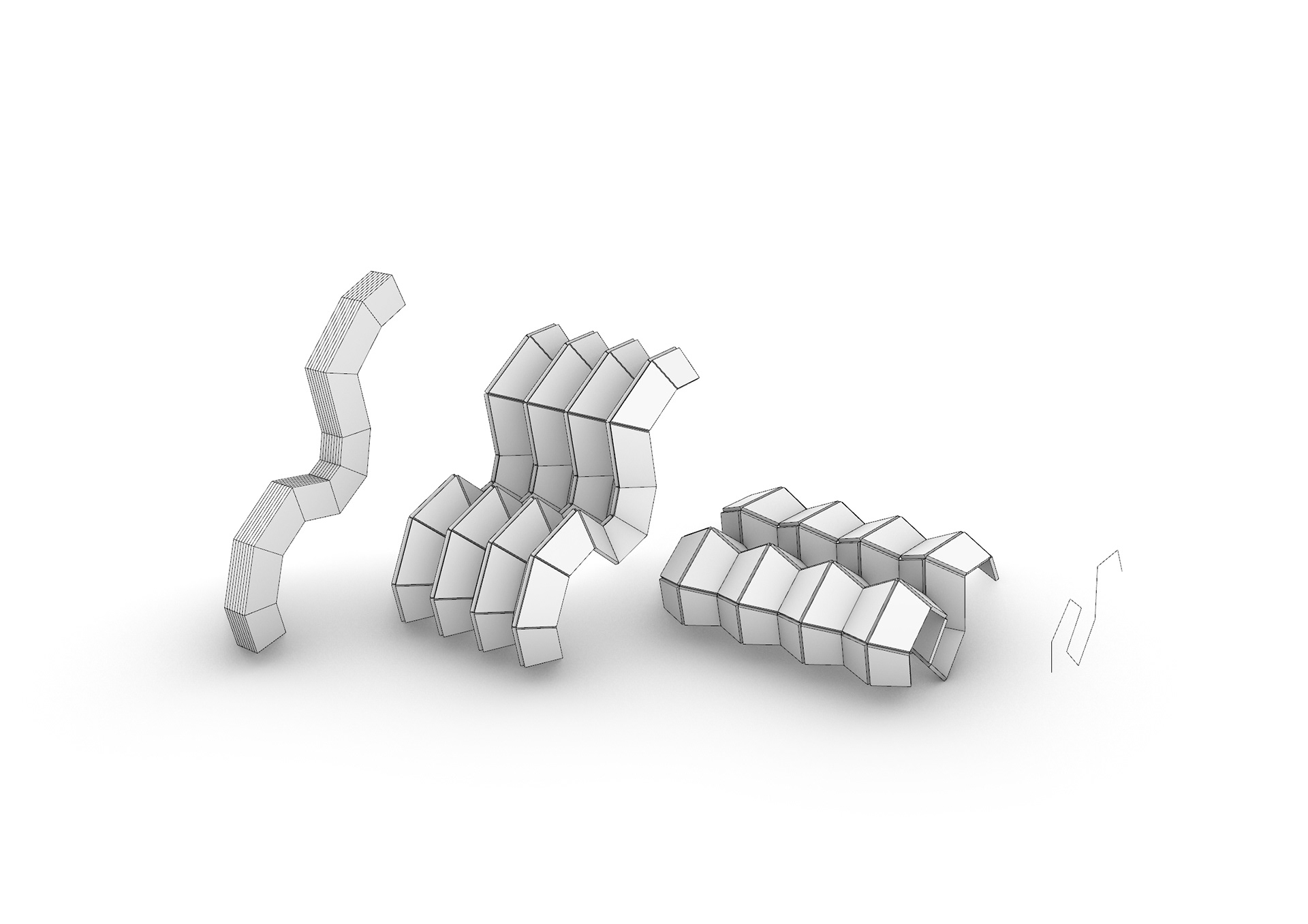

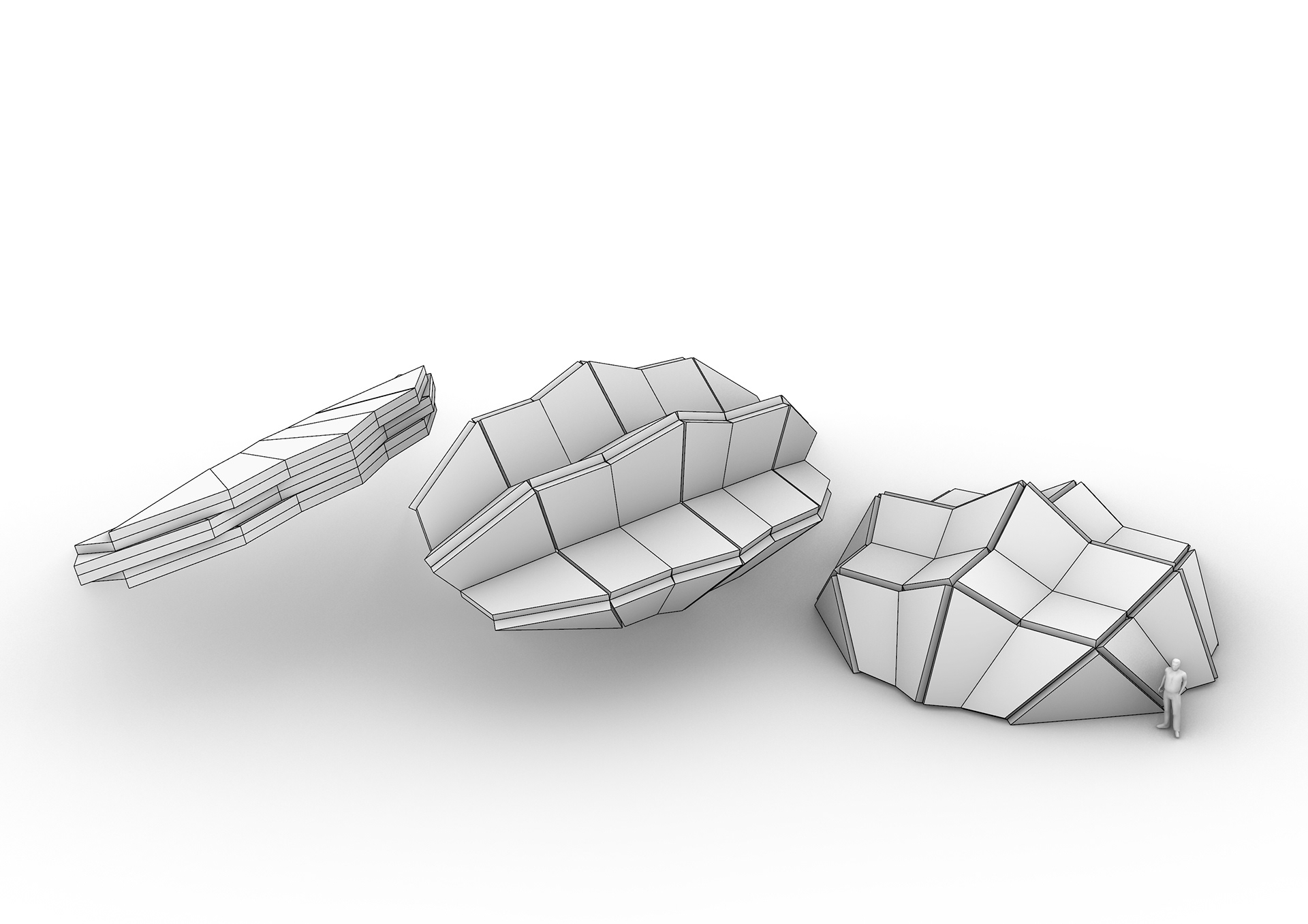

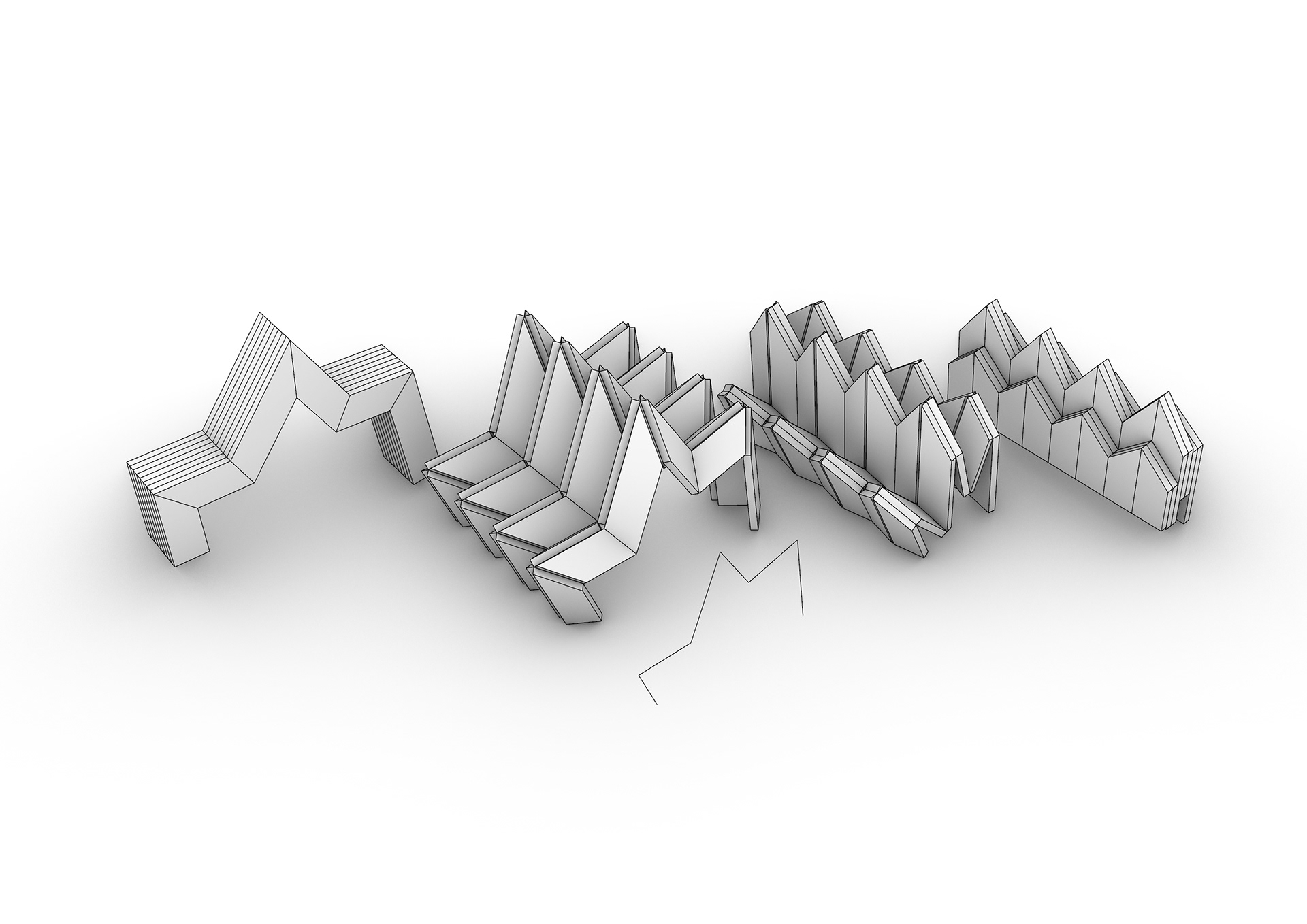

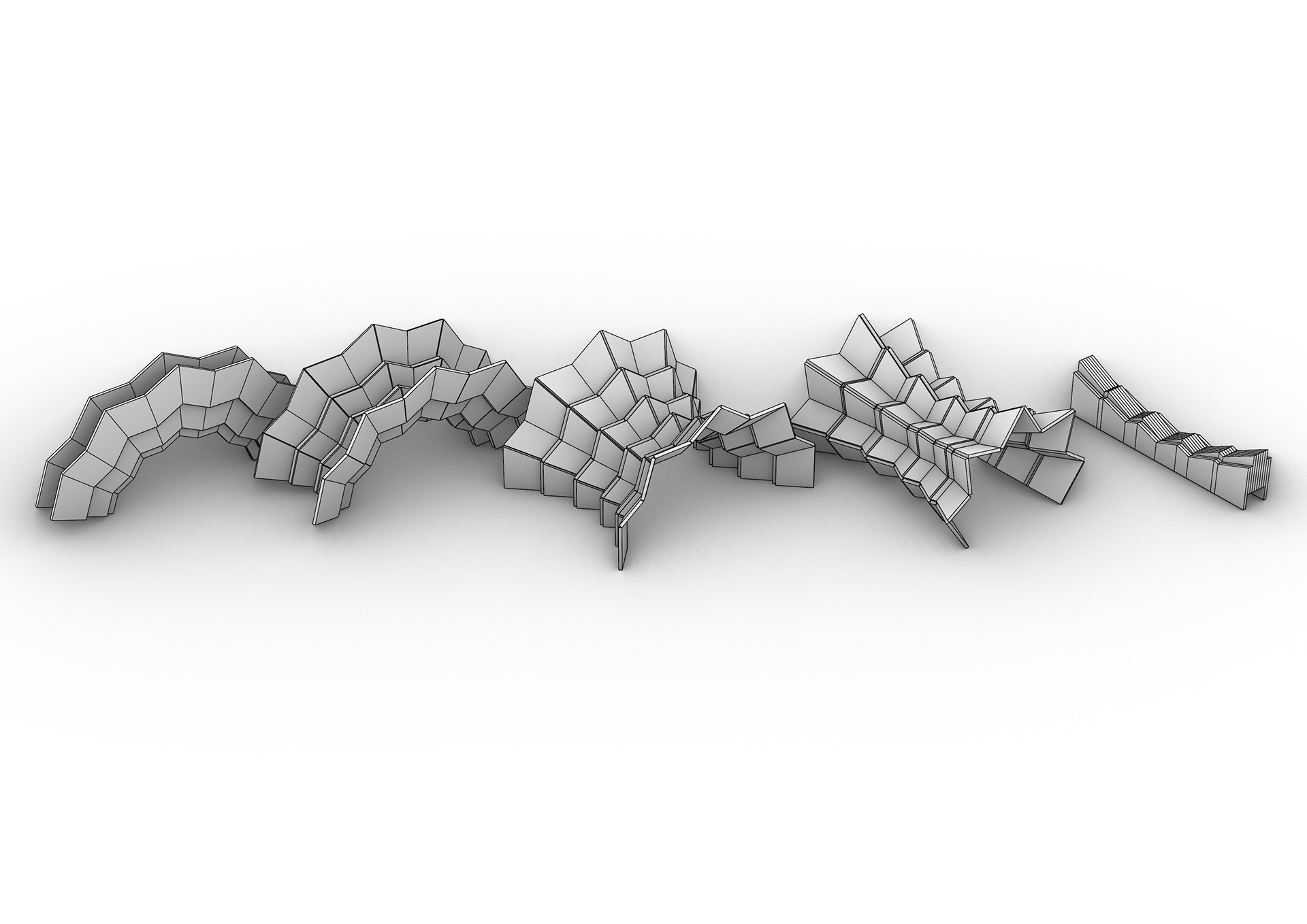

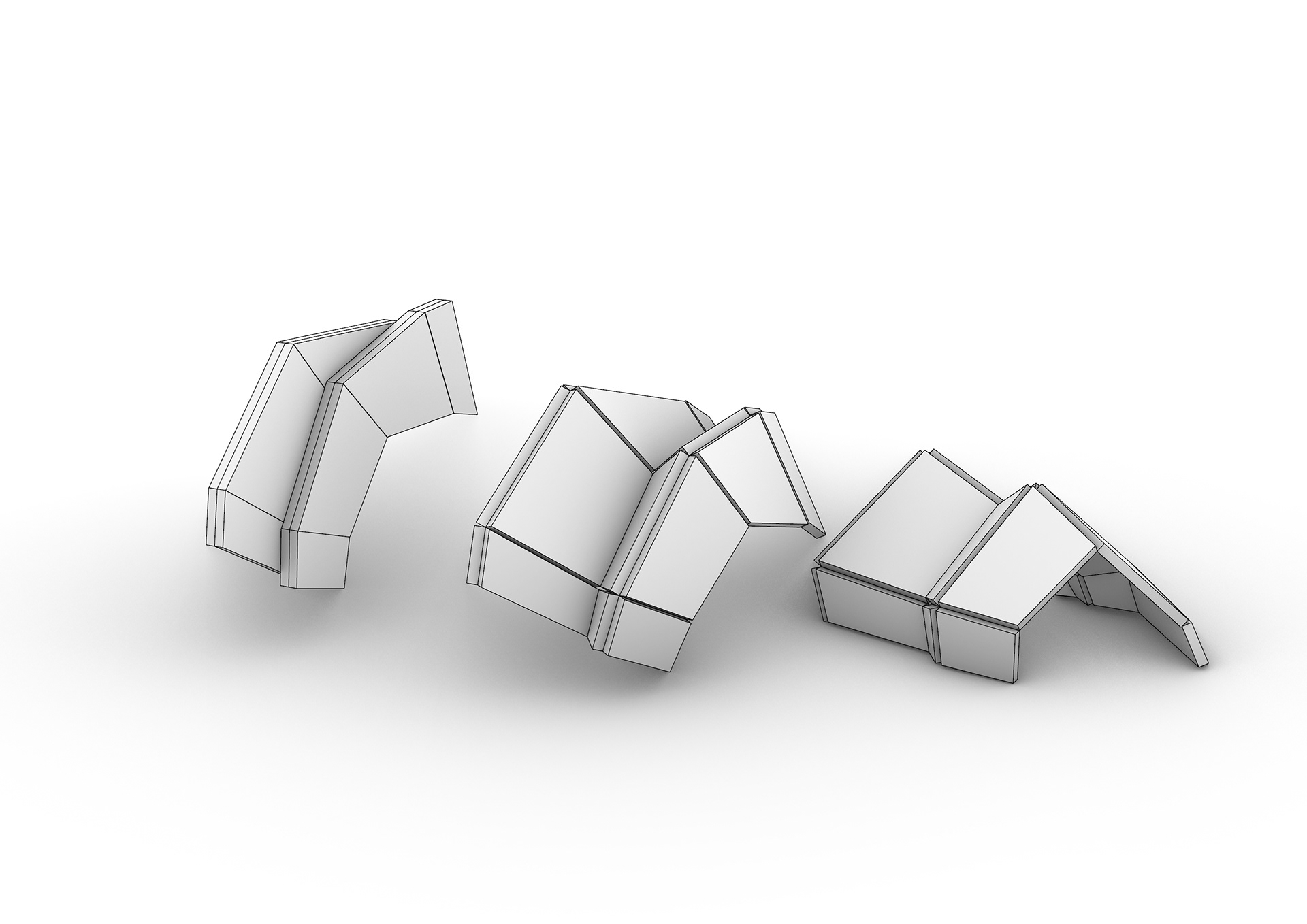

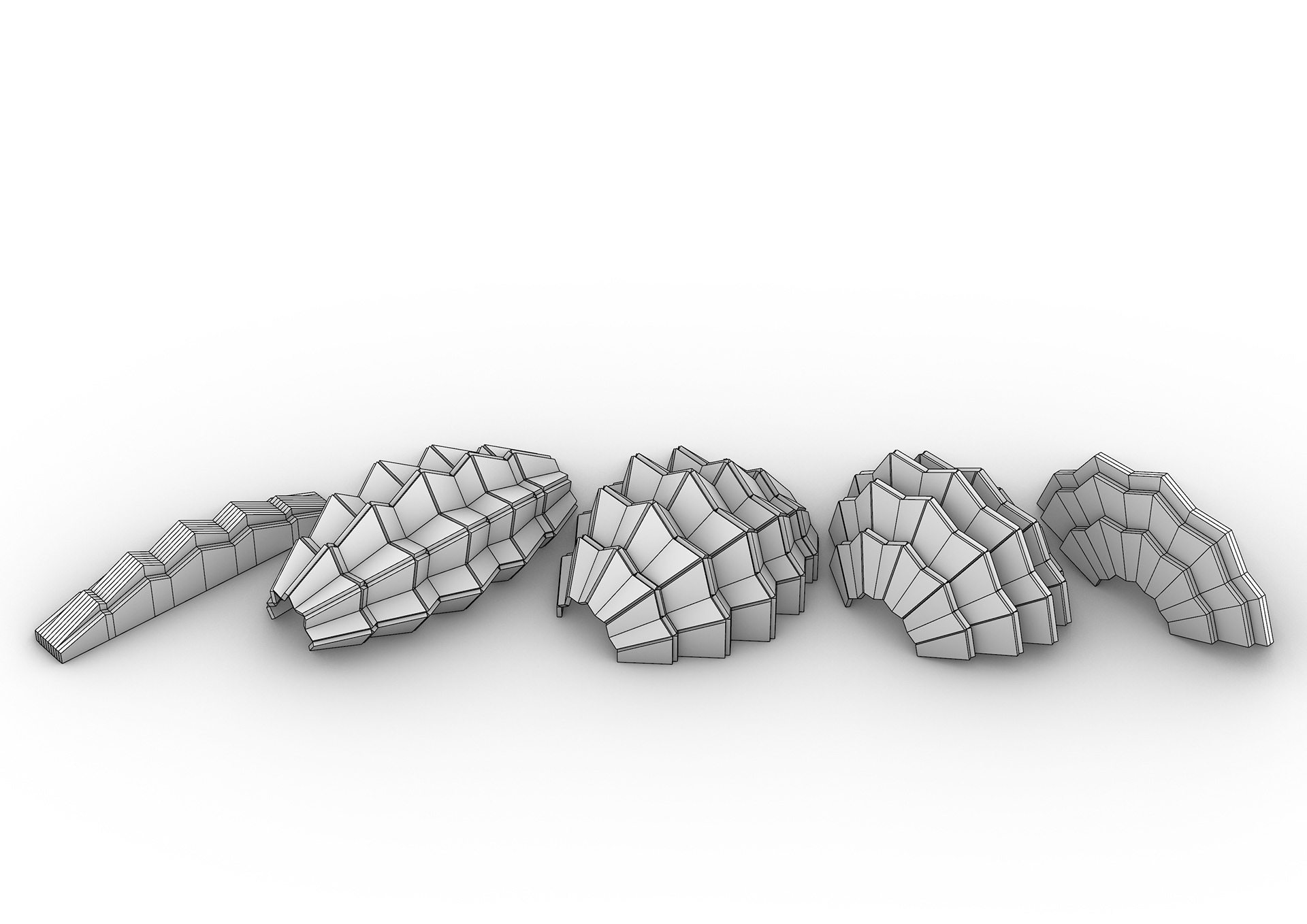

In this paper, we present a novel design method of rigidly foldable origami composed of panels with uniform thicknesses. Our design is based on quadrilateral transformable mesh composed of degree-4 vertex with equal opposite sector angles, forming a family of corrugated surfaces that folds flat. We apply thickness to such a rigidly foldable surface by extending the axis-shift method to degree-4 vertex with equal opposite angles. Using our method, each panel ends up having uniform thickness. We investigate the necessary and sufficient conditions on the pair of opposite angles and the thickness ratio for each saddle-like vertex to maintain the kinematics after thicknesses were applied. We construct parametric design models based on the derived constraints and explore the design space. The design examples of transformable structures are potentially applicable to architectural design. The resulting structures efficiently fold up to completely flat states with 180° fold angles, wherein the total thickness is the sum of the thicknesses of overlapping panels. This also allows for fabrication by first cutting out each panel and subsequently assembling them in the flat-folded state.
